❱❱ Technical Data
Mode of operation : Maintained
Lamp : 1 x 4W Cold Cathode Fluorescent Lamp (CCFL)
Rated duration : 2 hr and others
Mains supply : 230 Volts, 50/60Hz
Power consumption : 4VA
Battery : High temp nickel cadmium
Charge monitor : Red LED ø5mm
Test facility : Micro switch
Safety feature : Low volt cut-off preventing battery overdischarge
Fitting construction : Electro galvanised steel with epoxy powder coating
Diffuser : Fire retardant moulded acrylic
Mounting : Recess
Cable entry : ø20mm K/O hole
Weight : 3kg (gross)
Compliance : CP19, SS263 : Part 2, IEC 598-2-22, SS508
Warranty : 1 year

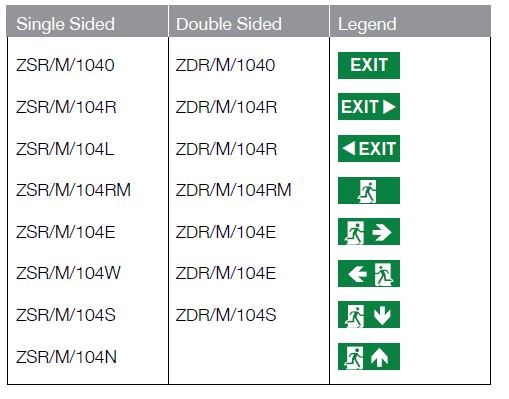

❱❱ Ordering Guide
Please check with Sales Dept if customisation is required
TYPE:
ZSR/M/1040 ZDR/M/1040
ZSR/M/104R ZDR/M/104R
ZSR/M/104L ZDR/M/104R
ZSR/M/104RM ZDR/M/104RM
ZSR/M/104E ZDR/M/104E
ZSR/M/104W ZDR/M/104E
ZSR/M/104S ZDR/M/104S
ZSR/M/104N
❱❱ Key Features
l high brightness output
l low heat
l low power consumption
l low maintenance
l highest lumen/watt efficiency
l long lifespan
