LUTRON - Wired International seeTouch® Keypads



HomeWorks® QS international seeTouch®

keypads provide homeowners with a simple and

elegant way to operate lights, shades / draperies,

motorized screens, thermostats, and many other

devices.

All HomeWorks® QS wired international

seeTouch® keypads have two contact closure

inputs on the back of the unit which provide

independent functions from the front buttons.

Some models are available with an infrared

(IR) receiver.

HomeWorks® QS international seeTouch®

keypads feature large, easy-to-use buttons, plus

a unique backlit engraving option that makes

the keypads readable any time of the day or

night. seeTouch® buttons are rounded, allowing

engraving to be displayed at an upward angle,

increasing readability.

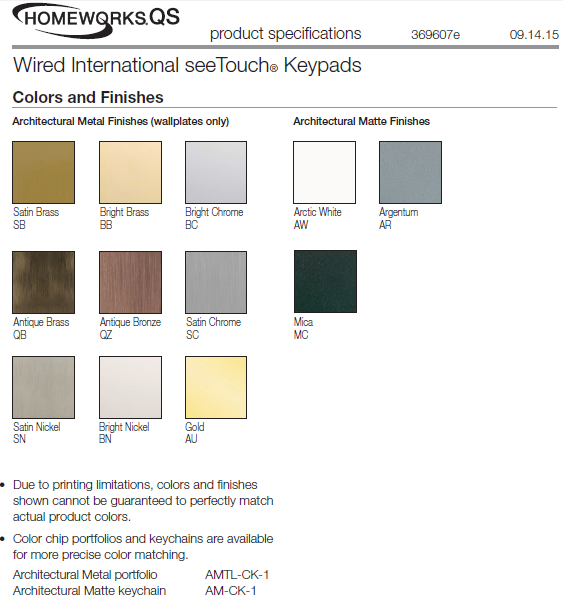

Replacement Kits are available in a variety of

colors and with custom engraving to clearly

identify each button’s function.

Lutron® wallplates snap on with no visible means

of attachment. Multi-gang wallplates sold

separately.

HomeWorks® QS wired international seeTouch®

keypads are available in many button

configurations, shown on the following two

pages. They are also available in insert (above

left) and non-insert (above right) styles. The insert

style keypad allows for easy ganging. Keypad

and Button/Wallplate kits sold separately.



Specifications
Model Numbers See pages 2 and 3 for complete lists of model numbers.
Power 24–36 V- 30 mA
Typical Power
Consumption
0.6 W; 1 Power Draw Unit (PDU)
Test conditions: all backlights on medium intensity, two LEDs on
(two presets active), keypad powered at 24 VRegulatory
Approvals
CE, S C-tick, UL, cUL
Environment Ambient operating temperature: 0 °C to 40 °C (32 °F to 104 °F),
0% to 90% humidity, non-condensing. Indoor use only.
Communications Connects to QS wired device link on Homeworks® QS processor.
ESD Protection Tested to withstand 15 kV electrostatic discharge without damage or
memory loss, in accordance with IEC 801-2.
Power Failure Power failure memory: should power be interrupted, the keypad will return
to its previous state when power is restored.

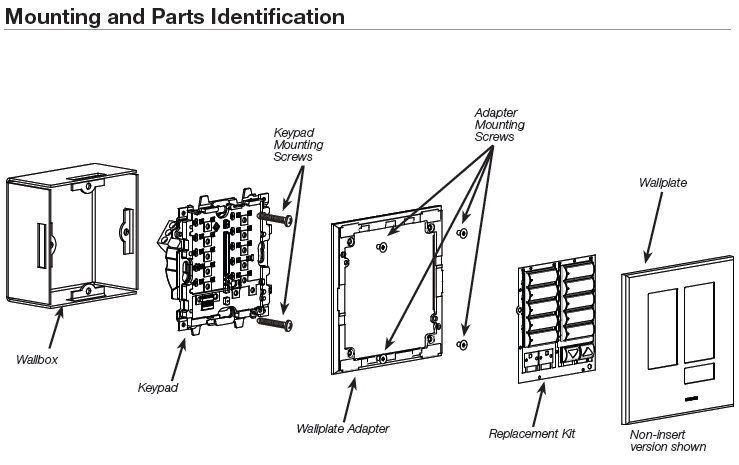

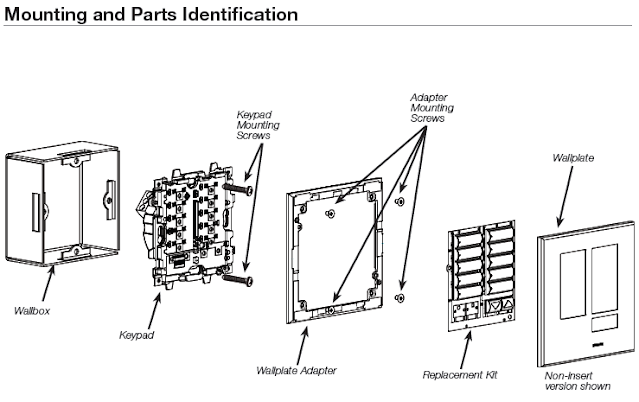

Mounting EBB-15 RD (Round wallbox) 71 mm diameter x 61 mm deep or EBB-15
SQ (Square wallbox) 71 mm wide x 71 mm high x 47 mm deep.
Wiring Control wire must be 1 pair 1.0 mm2 (18 AWG) SELV / PELV / NEC® Class 2
for power and 1 pair 0.5 mm2 to 1.0 mm2 (22 AWG to 18 AWG)
SELV / PELV / NEC® Class 2 twisted/shielded for data (see Wiring).

Design Features :
• Green status LEDs.
• Backlit button/engraving.
• Field-changeable Button/Wallplate Kits
allow for easy customization.
• All terminal block inputs are over-voltage
and miswire-protected against wire reversals
and shorts.
• Available as an insert style control for
muti-ganging.
• Lutron® wallplates snap on with no visible
means of attachment.
• Use Replacement Kits to change color,
button configuration, engraving, or to
convert between insert and non-insert
style configurations.
